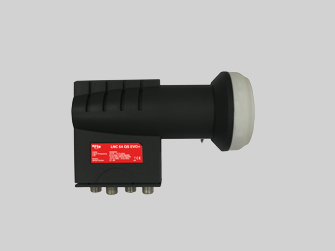

FTE Converter LNC 544 QS EVO QUAD 0.1 db

Universal Converter quad for 4 satellite receiver with excellent noise figure. Rubber coating provides exclusive protection of water penetrating damage to the connectors. Unbelievable low power consumption.

Technical parameters:
the low frequency range 10.7-11.7 GHz band
9.75 GHz local oscillator
high band frequency range from 11.7 to 12.75 GHz
10.6 GHz local oscillator
noise figure of 0.1 db
gain 55 dB min
Output Impedance 75 Ohm
consumption of 230 mA
4x output F connector
diameter mounting 40 mm
