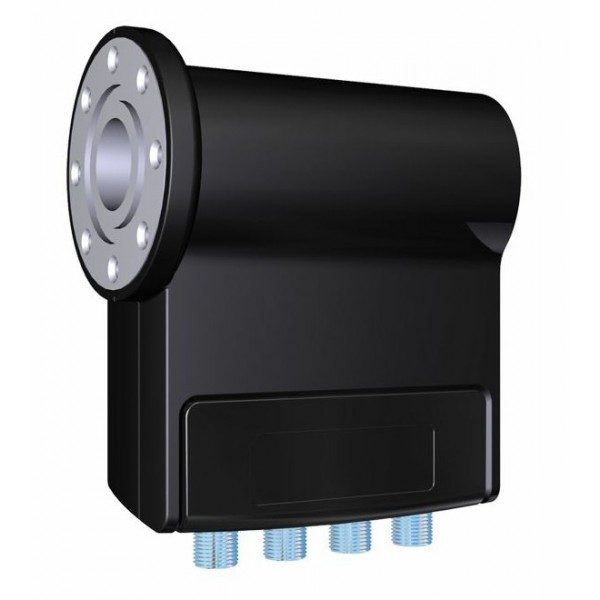

INVERTO RED Classic Quad Flange

Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 6.10 GHz
Noise Figure 0.3 db type. (0.7 dB Max.)
LO Initial Accuracy/-1.0 MHz max.
LO Temperature Drift/-3.0 MHz max.
Phase Noise (@ 10 kHz)-80 dBc/Hz max.
Conversion Gain 55 db Min
Gain Ripple (over 26 MHz Bandwidth)/-0.75 db
Gain Variation (over-Full Band)/-4 dB Max.
Image Rejection 40 db Min
1 db Compression Point (@ output) 0.0 dBm Min
Cross Polarization Isolation 22 db Min
Output VSWR 2.5: 1
In-band spurious-60 dBm max.
Current Consumption 200 mA Max. @ 11 ~ 20 V
Control Signal of Ca (Vertical Polarization) 10.0 ~ 14.0 V
Control Signal Cb (Horizontal Polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band switching) 22/-4 kHz
Output VSWR 2.5: 1
In-band spurious-60 dBm max.
Current Consumption 180 mA Max. @ 11 ~ 2 0V
Operating Temperature-30 ° C ~ 60 ° C
Output Impedance 75 ohm
Output Connector F-Type (Female)
Weight 243 g
