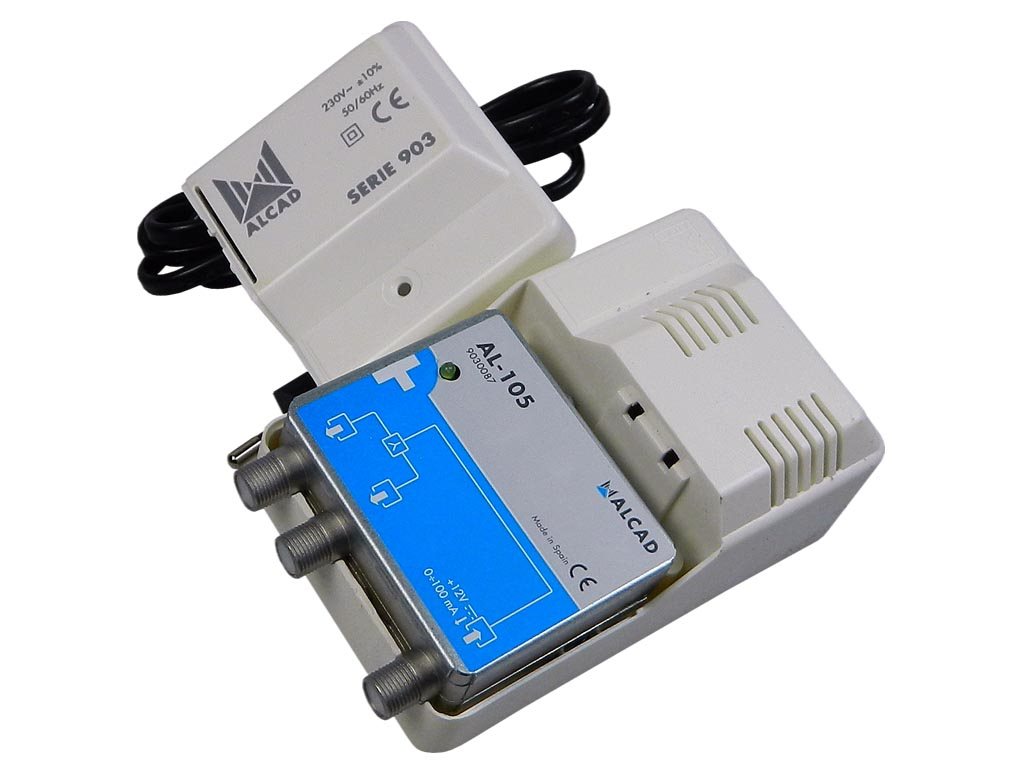

Alcad active broadband AL-105 hub

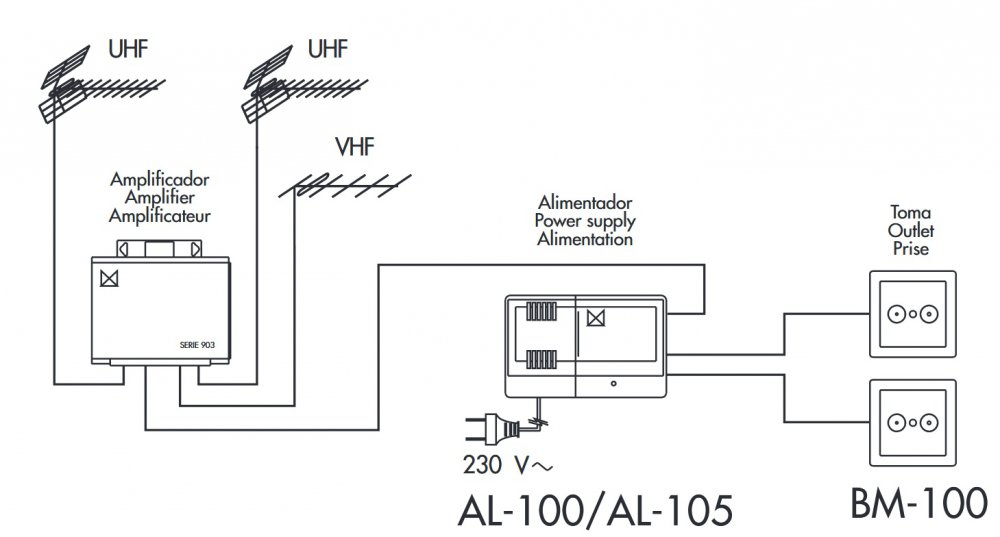

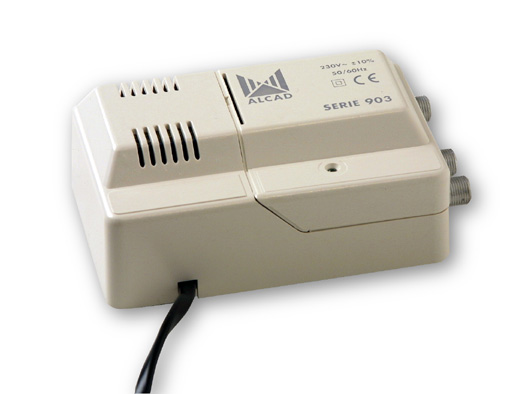

Alcad AL-105 power supply for power amplifiers (AM) to 12V. It has an integrated power supply and an output broadband hub. It includes a power cord to the socket.

Parameters:

Number of Entries:
1x (F connector screwdriver)

Number of outputs:
2x (F connector screwdriver)

Attenuation:
4.8 & plus; 0.5 dB

Frequency range:
40-862 MHz

Power:
230V + 10 % (50/60 Hz)

Output voltage:
12 V/max. 100 mA

Working temperature:
-5 to +55 ° C

Security class:
IP30

Weight:
± 430 g
