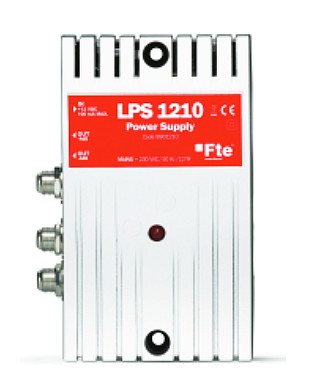

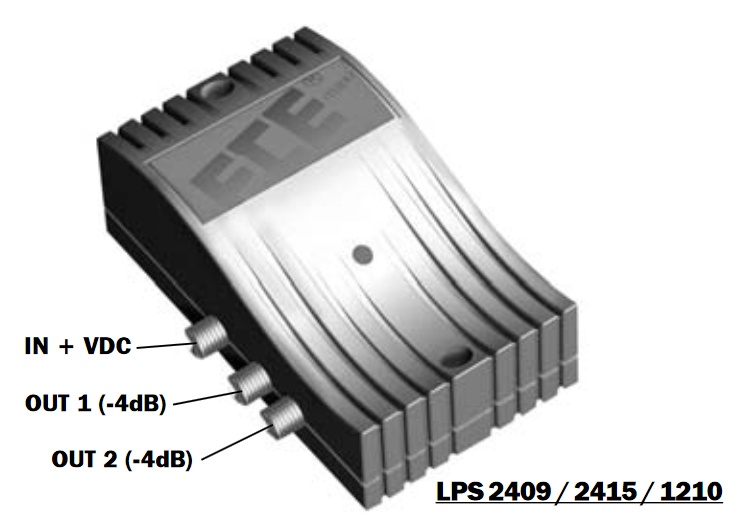

LPS 1210th Power source 12VDC 100mA/2 OUT

12V/100 mA power supply for components in the TV signal distribution. For indoor use. The radio frequency part is shielded.

Parameters:

Output voltage:
12 V

Maximum current consumption:
100 mA

Frequency range:
5-862 MHz

Attenuation:
< 4 dB

Number of Entries:
1 (F connector)

Number of outputs:
2 (F connector)

Power:
230 VAC/50 Hz

Consumption:
2.2 W

Dimensions:
70 x 110 x 40 mm
