Zircon Coaxial Cable 125 CCS AL 100m

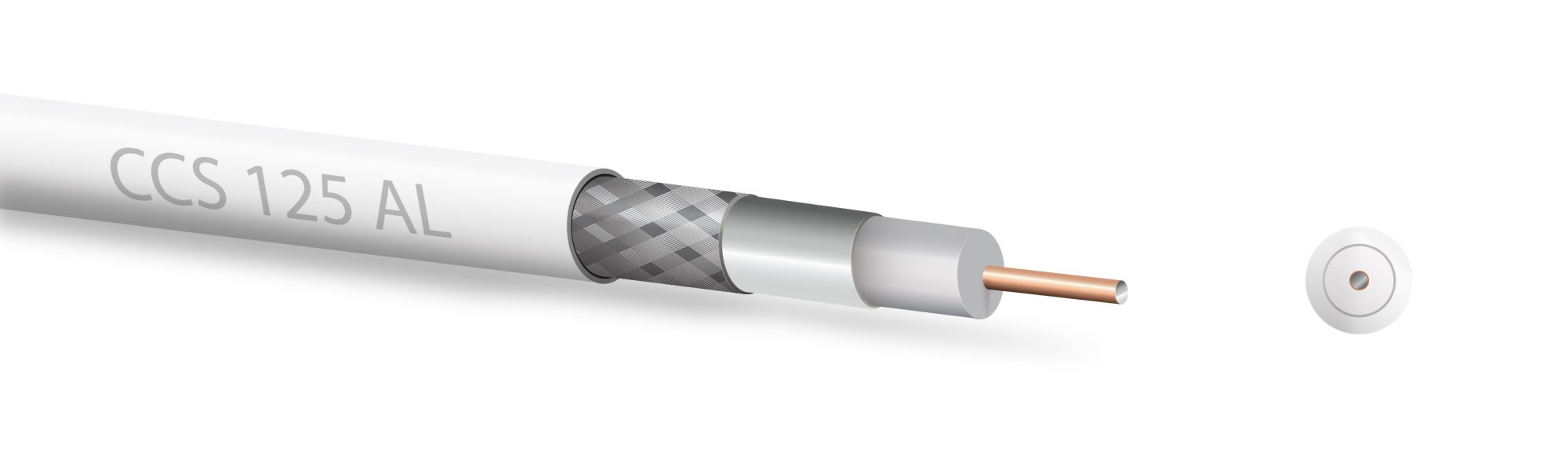

Quality coaxial cable for indoor use with excellent price/quality ratio. Impedance 75 Ohm, internal conductor-CCS, internal conductor diameter 1 mm, foam dielectric, shielded Al foil and braid 72x0.12 mm Al, packed 100 m. Illustrative photo. Parameters:-Interior conductor CCS 1.0 mm-Interior diameter of cable 6.8 mm-Fibrous dielectric 4.6 mm-Maximum bending radius 65 mm, repeated 95 mm-Internal conductor resistance 18 Ohm/km-External braiding resistance 12 Ohms /km-Weight 4.6 Kg/100m-Operating Temperature-40 to +70 C-Screening 86 dB Attenuation dB/100m 10 MHz-1.9 dB 300 MHz-10.8 dB 600 MHz-15.6 dB 860 MHz -20.1 dB 1350 MHz-24.9 dB 2400 MHz-34.5 dB
