TRIAX wall socket TOU ongoing TV 10 R 10 db

Name: TRIAX wall socket TOU ongoing TV 10 R 10 db
Brand: TRIAX
Price: 6.259399999999999 EUR
Availability: InStock

Doprodej

-2%

Participant TV + R socket with 10 dB junction attenuation.

Producer

TRIAX

Code

ZIPTR21002

Part No.

5702663036307

Set Watchdog Print

Product details

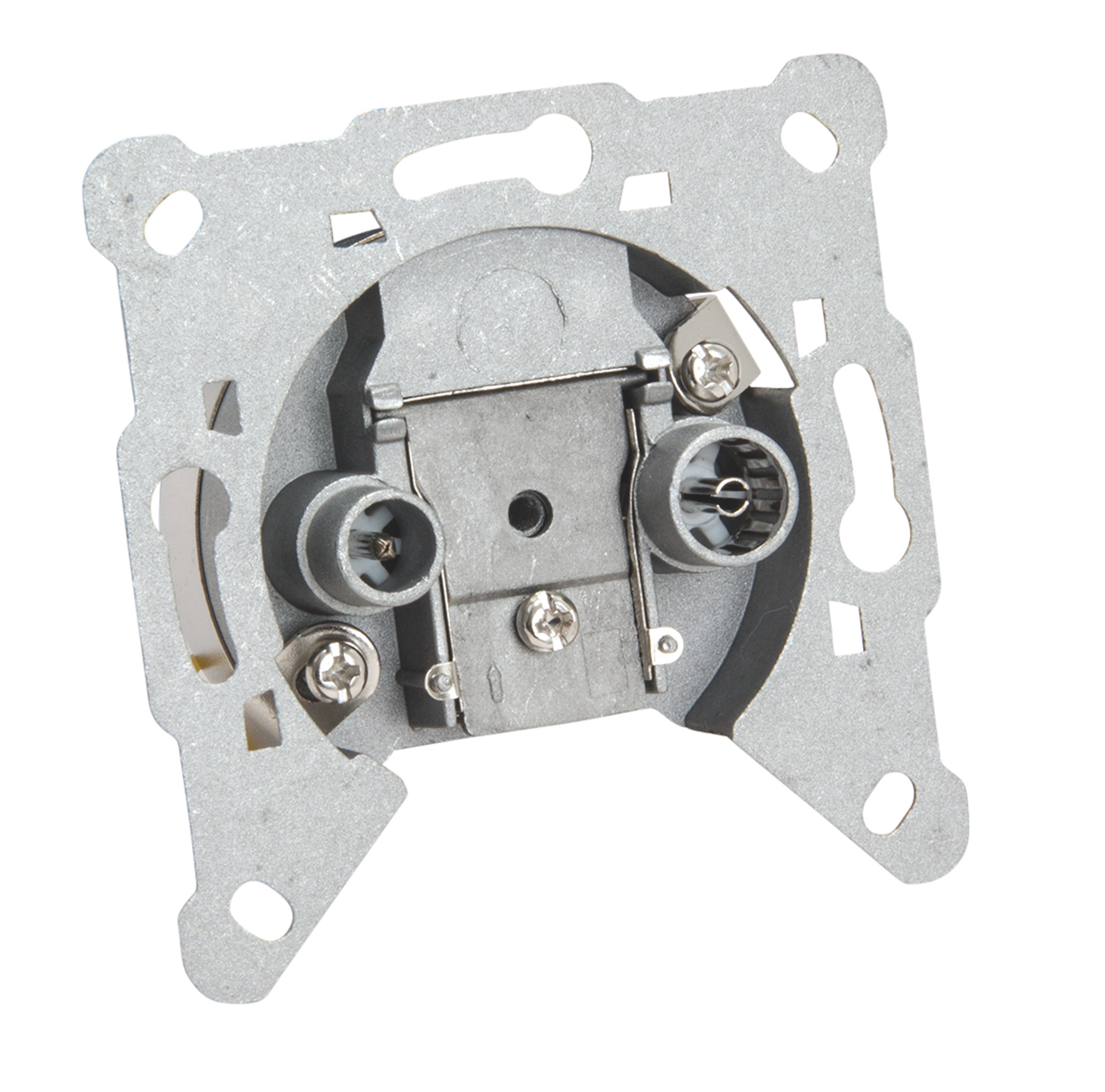

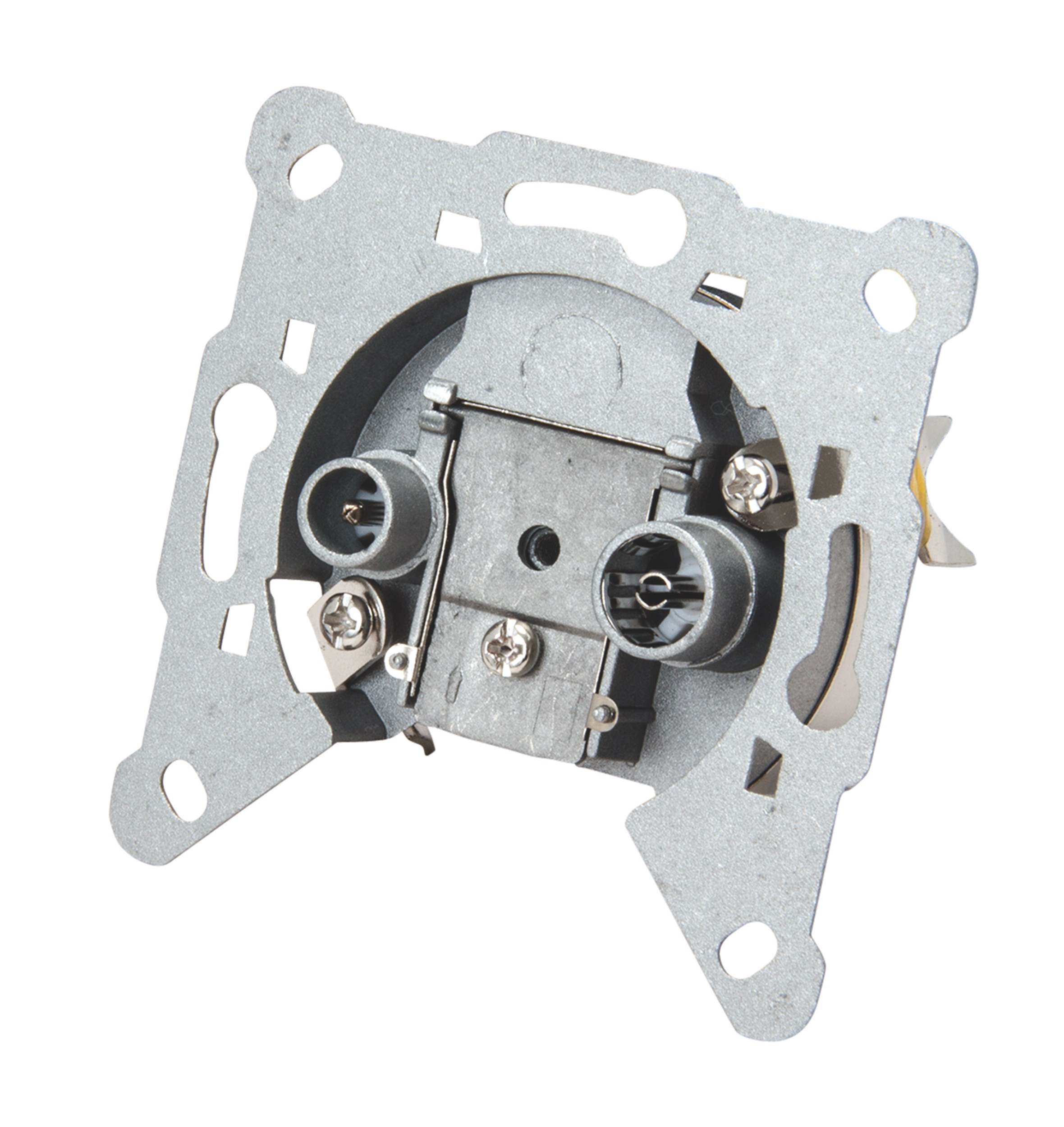

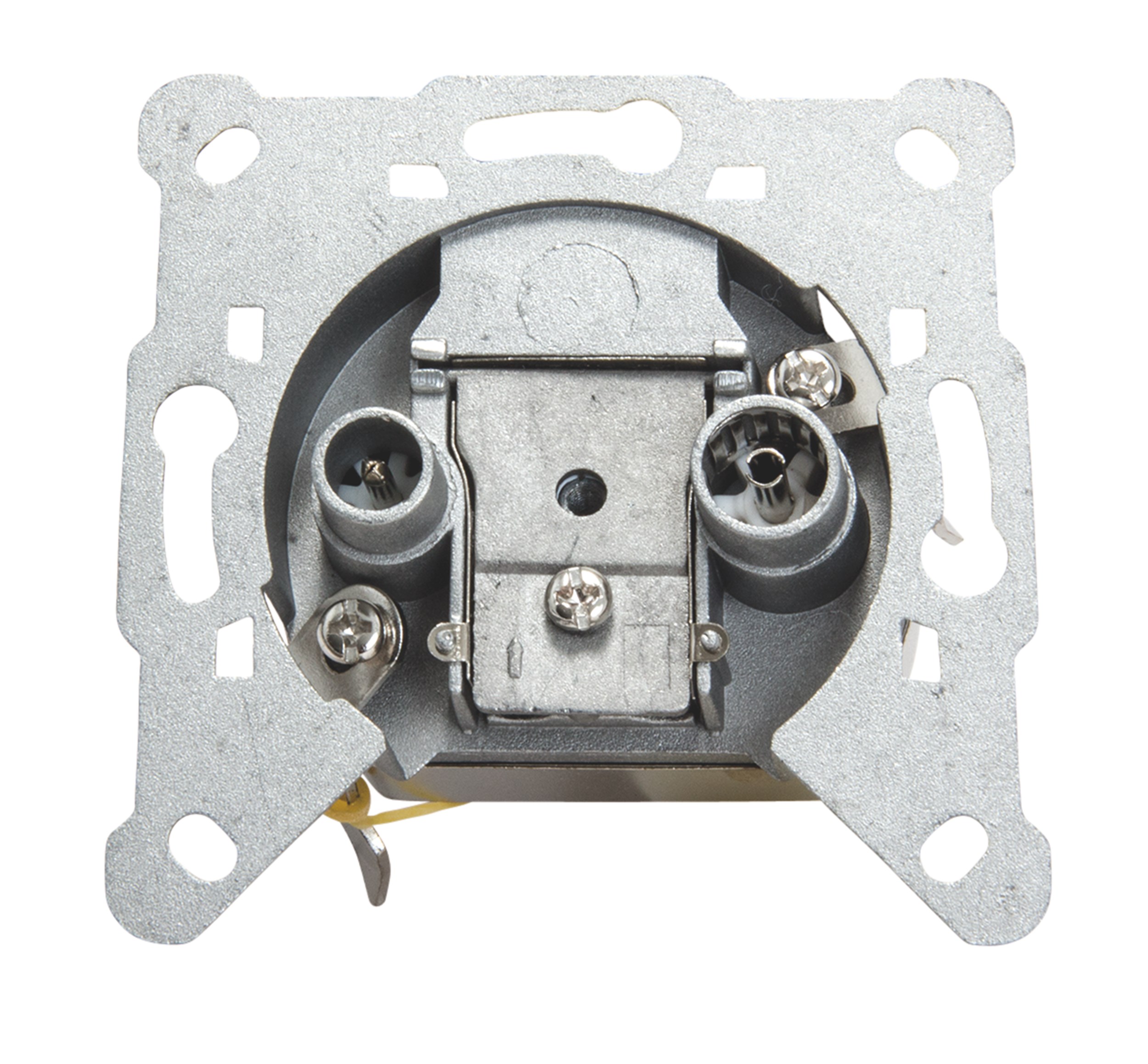

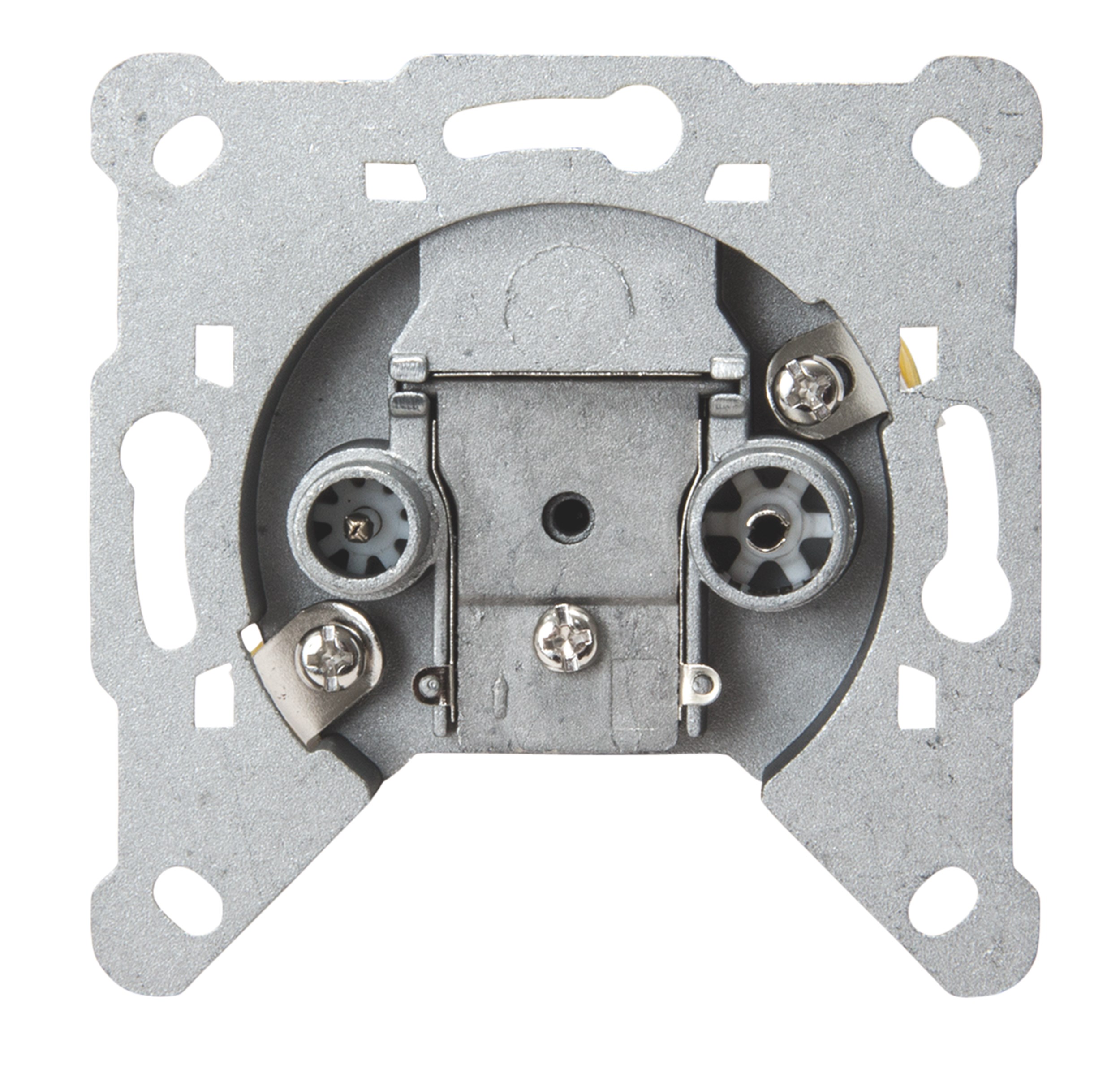

TV + R socket with 10 dB junction attenuation.
The Triax TOU drawer series is made of cast zinc, IEC coaxial connectors meet DIN 45325 and IEC 169 standards.
The sockets can be built into round wall cabinets with a diameter of 60 mm or surface mounted by a TOU frame.

Parameters:

Frequency Response:
5-862 MHz
TV: 5-74/120-862 MHz
R: 87.5-108 MHz

Pass-through attenuation:
TV max. 1.5 dB
R max 1.5 dB

Odbočovací útlum:
TV: 10.0 dB
R: 10.0 dB

Connectors:
TV: IEC (male)
R: IEC (female)

Impedance:
75 Ohm
