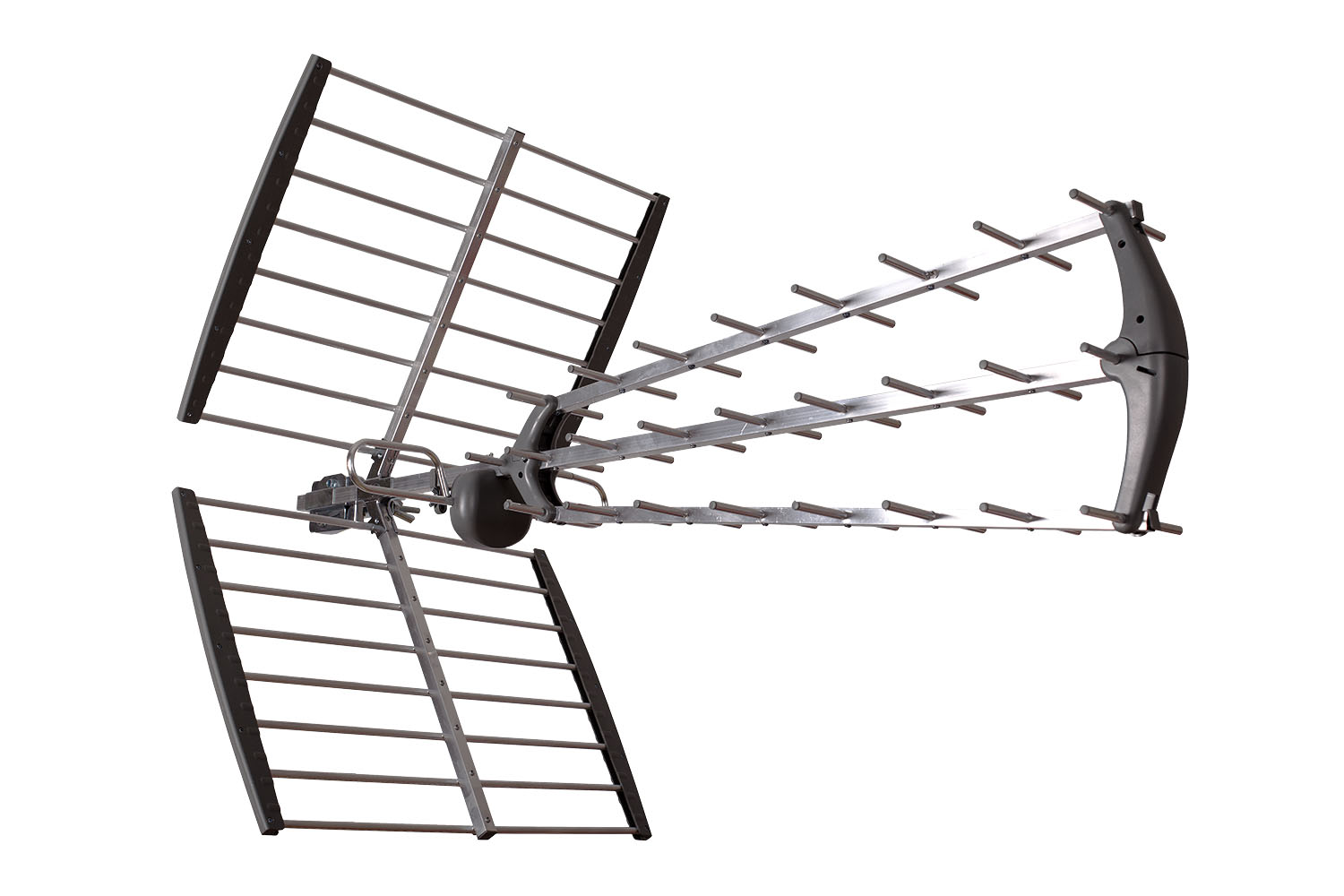

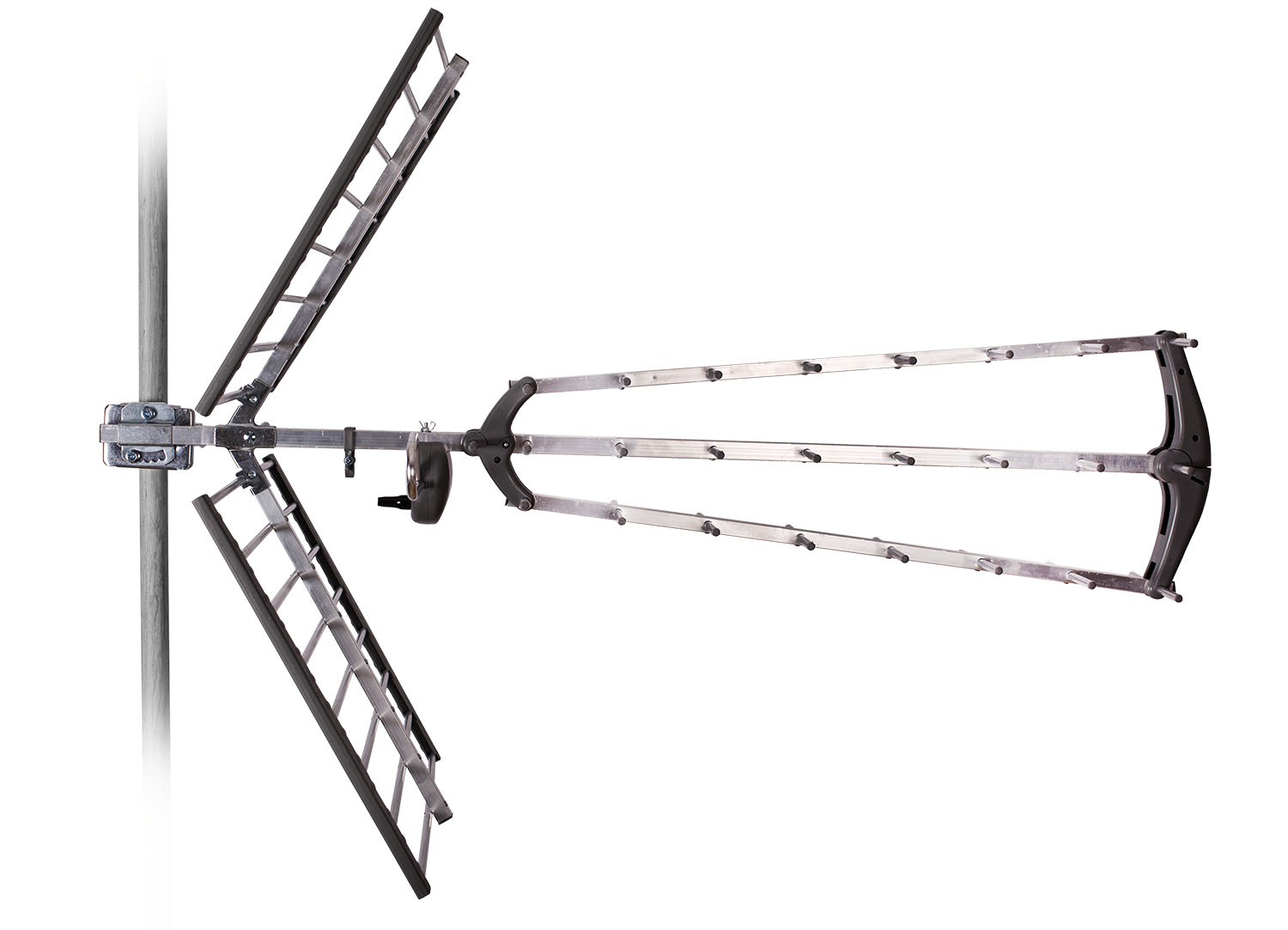

TESLA TE-346 - outdoor antenna, 470-790 MHZ

TESLA TE-346 - outdoor antenna, 470-790 MHZ


Outdoor antenna for receiving DVB-T/T2 signals • ready for LTE • high gain and low noise • also suitable for receiving remote transmitters • quick assembly, easy installation • gain 11-17 dBi • frequency range 470-790 MHz

Producer
TESLA
Code
ANTTA10P002
Part No.
8594163275716
Availability
MOC exc. VAT
35.29 EUR
MOC inc. VAT
42.00 EUR
Warranty
2 Year
Delivery options

Product Rating
Rated 0x

    Product details

    Outdoor antenna for DVB-T/T2 signal reception with an integrated LTE filter, which cancels the frequency of mobile operators, which can interfere with the reception of a TV signal. Enables the reception of a digital DVB-T2 signal up to a distance of 120 km (in  depending on the terrain). Easy and very quick installation without the use of tools.

    • outdoor antenna for DVB-T2 signal reception
    • LTE ready
    • high gain and low noise
    • also suitable for receiving remote transmitters
    • patented technology - you can fold the antenna without tools in 2 minutes

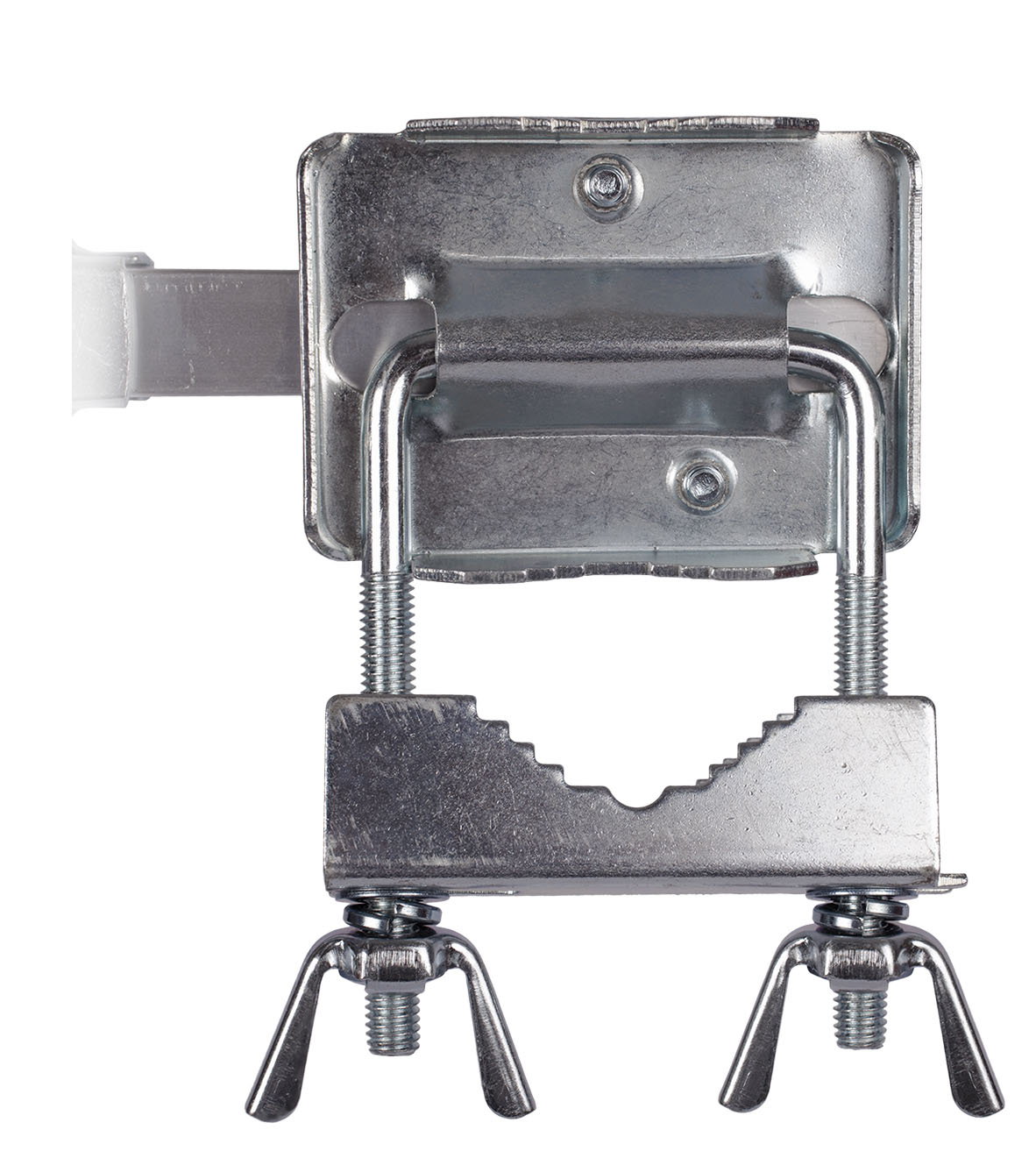

    • mounting is adapted for horizontal and vertical polarization
    • very solid construction

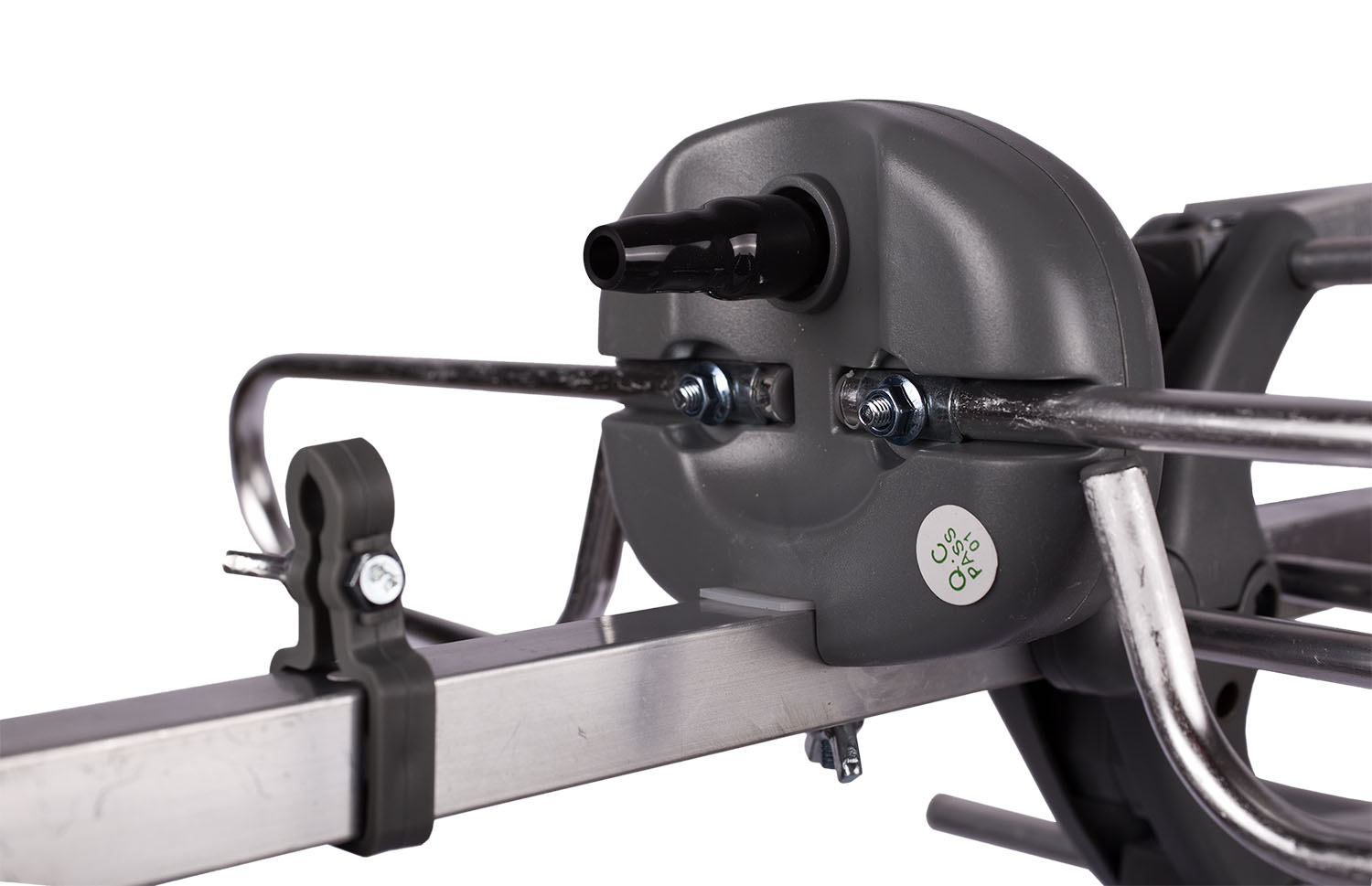

    • watertight dipole with F connector
    • Effective distance for reception up to 120 km




    Specifications

    Number of elements:
    42

    Channels:
    21-60

    Frequency range:
    470-790 MHz

    Profit:
    11-17 dBi

    Angle of reception:
    H°32 / V°40

    Front-back ratio:
    30 dB

    Impedance:
    75 Ohm

    Length:
    1050 mm

    Package contains
    outdoor antenna TESLA TE-346,
    dipole with F connector and cap,
    build manual


    Product manager:

    Věra Kovaříková,  PODPORA@INTER-SAT.CZ

    Related documents

    Uživatelský manuál
    TESLA-TE-346-manual.pdf
    Prohlášení o shodě
    CE_TESLA_TE-anteny-19.pdf
