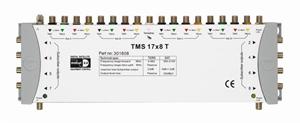

Multiswitch TRIAX TMS 17/8T

TRIAX TMS 17x8T the multiswitch with 17 inputs for 4 satellite satellite terestriál a VHF/UHF and 8 outputs for end subscriber outlet R TV SAT. It is intended primarily for community antenna systems. This multiswitch is powered by a source 17PSU TMS, which is not included.


Technical parameters:

        -Inputs-16x Sat, 1 TER
        -Number of outputs-8
        -Connectors-F
        -Frequency range-SAT 950-2150 MHz active
        -Frequency Response-TER 5-862 MHz passive
        -Isolation distance between the LNB and LNB-35 db
        -Isolation distance between TER and the SAT-20 db
        -Isolation distance between SAT and TER-30 dB
        -Insulation distance between V/H-28 db
        -Impedance at input and output-75 Ohms
        -Switching Voltage-13/18V/22Khz-DiSEqC 2.0
        -Supply voltage-15 V
-Power supply external power supply 1.3 A
        -Operating temperature 0 to 55 ° C
        -Dimensions (WxDxH)-125x55x355 mm
