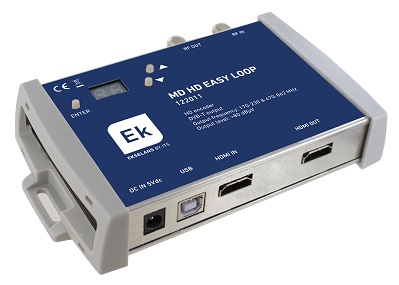

Its MD MD EASY LOOP MODULER

ITS MODULATOR MD HD EASY LOOP

Excellent MER 33 dB modulation quality
Resolution up to 1080p
HDMI source indication active
HDMI IN / OUT setting option
Quick Menu. Easy adjustment with channel and attenuation buttons
Advanced easy programming using PC program
HDMI input
Output: HDMI (IN / OUT)

VIDEO:
480p video resolution - 576p - 720p - 1080i - 1080p
H.264 video compression
Video Kbps Speed ??500-15000

AUDIO:
MPEG1-L2, AAC-LC audio compression
Audio frequency Kbps 128, 192, 256, 320, 384

Modulation:
DVB-T NIT, PID processing
DVB settings
NID, onid, network ID, network
name, TS ID, Program ID, Program
name, PMT PID, Video PID, Audio PID
Output frequencies 170 - 230 MHz and 470-862
Output channel N. 5 ... 12 + 21 ... 69
DBiV output level> 80
0 ... 15 dB attenuation
MER dB? 33
MHz bandwidth 6, 7, 8
Constellation QPSK, 16QAM, 64QAM
2K mode, 8K
FEC 1/2, 2/3, 3/4, 5/6, 6/7
Guard interval 1/4, 1/8, 1/16, 1/32
LCN EACEM, ITC, Nordig
RF loop -2 dB

Parameters:
5 Vdc supply voltage
Power consumption W <10
The source is part of the package
Dimensions mm 150 x 99 x 46
Weight 215 g
