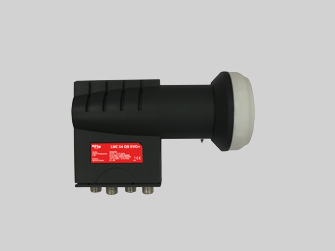

FTE Converter LNC 544 EVO QUATTRO 0.1 db

Cheapest Quatro converter in our offer designed for use with multi-switches with excellent noise figure. Split output: 1 V low band, low band 1 H, 1 V High Band, 1 H high band.
ogumované exclusive design ensures the protection of water penetrating damage to the connectors. Unbelievable low power consumption.

Technical parameters:
the low frequency range 10.7-11.7 GHz band
9.75 GHz local oscillator
high band frequency range from 11.7 to 12.75 GHz
10.6 GHz local oscillator
noise figure of 0.1 db
gain 55 dB min
Output Impedance 75 Ohm
4x output F connector
diameter mounting 40 mm
consumption of 250 mA
