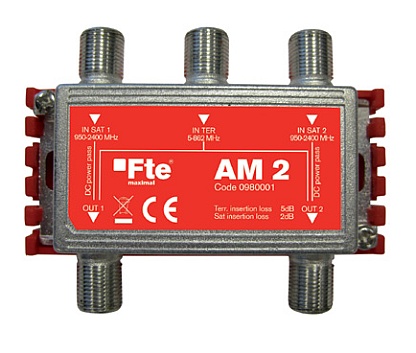

FTE combiner terr. sat down. signal AM2

-2%

Terrestrial and satellite signal combiner for F connectors. Two satellite inputs and two mix outputs. SAT throughput for power and LNB control signals.

Producer

Fte

Code

PIPFT33009

Part No.

8436018446547

Set Watchdog Print

Product details

Ground and satellite signal combiner. Two satellite inputs and one ground-two mix outputs. SAT throughput for power and LNB control signals. LNB power supply (SAT branch) up to 500 mA.

Products:

Inputs (3):
1x F-connector (female)-TER
1x F-connector (female)-SAT1
1x F-connector (female)-SAT2

Outputs (2):
1x F-connector (female)-TER + SAT1
1x F-connector (female)-TER + SAT2

Frequency range:
TER: 5-862 MHz
SAT: 950-2400 MHz

Attenuation:
TER: 4.5 dB
SAT: 2 dB

Impedance:
75 Ohm

Installation:
indoor use

Dimensions (WxHxD):
74.5 x 67 x 19.7 mm
