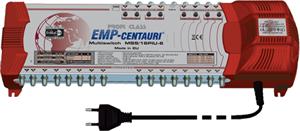

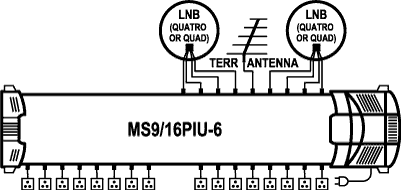

EMP Multiswitch 9/16 DiSEqC 2.0 passive/active TER band

9in/16out standalone multiswitch for distribution of terrestrial and satellite signals from 2 satellite positions (8 polarities) for 16 participants.

Multiswitch is controlled from the receiver DiSEqC 1.0 commands ("Position 0.1" in the menu of the receiver marked as DiSEqC 1.2 or A, B) or analog commands ("Tone Burst 0.1").
Switching between active and passive modem terrestrial television is provided via DIP switch.
Quad LNB compatibility (12/18 V DC, 0/22 kHz converters) is provided automatically, 22 kHz can be turned on/off via DIP switch.
Power supply for 12 V DC terrestrial preamplifier is electronically fused, 150 mA max

Technical specifications MS9/16PIU-6 V10
Frequency 950-2300 MHz input rozsahLNB
Terr. input 5-862 MHz (passive)

40-862 MHz (active)
outputs 5-2300 MHz (passive)

40-2300 MHz (active)
Control DiSEqC 1.0 (2.0) commands
Through útlumSat. 0 db avg
Terr. (passive) 21 db avg
Terr. (active) of 5 dB avg
Isolation sat. vstupůmezi V/H polarisations 20 db min
between the lower/upper range of 20 dB min
between the LNB 25 db min
Maximum input level * Sat. 90 dB avg
Terr. 100 dB avg (passive)

90 dB avg (active)
Maximum output level * Sat. 90 dB avg
Terr. 79 dB avg (passive)
85 dB avg (active)
Příkonz each receiver 50 mA (18 V)
From internal power supply 3 W (passive)
4.5 W (active) LNB
Terr. předzesilovače150 mA max (12 V DC)
Dimensions (D, S, V) 47.0 x 15.2 x 8.7 cm
(Cord length 130 cm)
Temperature range-30 ~ 70 ° C

* Terr.: EN 50083-3/60dB IMA3[dB]; SAT: EN 50083-3/35dB IMA3[dB]
