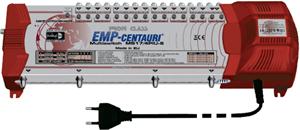

EMP Multiswitch 17/4 DiSEqC 2.0 passive/active TER band

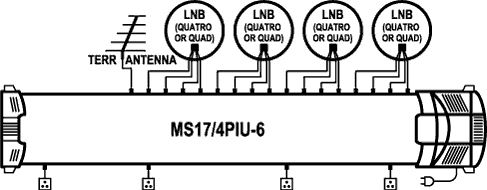

17in/4out standalone multiswitch for distribution of terrestrial and satellite signals from 4 satellite positions (16 polarities) for 4 participants.

Multiswitch is controlled from the receiver DiSEqC 1.0 commands ("Position 0.1" and"0.1 Option" in the menu of the receiver marked as DiSEqC 1,2,3,4 or A, B, C, D).
Switching between active and passive modem terrestrial television is provided via terrestrial attenuator (passive-attenuator in the far left position)
Quad LNB compatibility (on/off 22 kHz converters) is provided automatically, 22 kHz can be turned on/off via DIP switch.
Power supply for 12 V DC terrestrial preamplifier is electronically fused, 150 mA max

Technical specifications MS17/4PIU-6 V10
Frequency 950-2300 MHz input rozsahLNB
Terr. input 5-862 MHz (passive)

40-862 MHz (active)
outputs 5-2300 MHz (passive)

40-2300 MHz (active)
Control DiSEqC 1.0 (2.0) commands
Through útlumSat. 0 db avg
Terr. passive 12 db avg
Terr. active 0 dB avg
Isolation sat. vstupůmezi V/H polarisations 20 db min
between the lower/upper range of 20 dB min
between the LNB 25 db min
Maximum input level * Sat. 90 dB avg
Terr. 100 dB avg (passive)

90 dB avg (active)
Maximum output level * Sat. 90 dB avg
Terr. 88 dB avg (passive)
90 dB avg (active)
Příkonz each receiver 75 mA (18 V)
From internal power supply 4.5 W (passive)
6.5 W (active) LNB
Terr. předzesilovače150 mA max (12 V DC)
Dimensions (D, S, V) 47.0 x 15.2 x 8.7 cm
(Cord length 130 cm)
Temperature range-30 ~ 70 ° C

* Terr.: EN 50083-3/60dB IMA3[dB]; SAT: EN 50083-3/35dB IMA3[dB]
