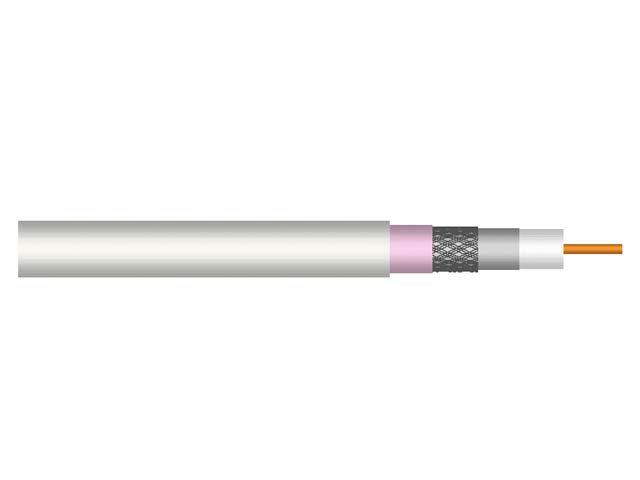

High quality coaxial cable for indoor and outdoor use. Impedance 75 Ohm, internal wire-copper wire, diameter 0.8 mm inner conductor, foam dielectric, aluminum foil shielded, PVC packaging, packed the equivalent of 100 m Belden H121.
parameters: the inner-conductor 0.8 mm Cu -outer diameter 5 mm -Maximum bending radius 25 mm -Resistance of the inner conductor 35 Ohm/km -Weight 2.3 kg/100
attenuation dB/100m 100 MHz-7.8 db 200 MHz-11.2 db 400 MHz-16.2 db 800 MHz-22.6 db 950 MHz-25.1 db 1750 MHz-36.3 db 2150 MHz-41.3 db
We use so-called cookies to operate our website. Cookies are files used to customize the content of the website, to measure its functionality and, in general, to ensure your maximum satisfaction. Let us know about your preferences.
Product details
parameters: the inner-conductor 0.8 mm Cu
-outer diameter 5 mm
-Maximum bending radius 25 mm
-Resistance of the inner conductor 35 Ohm/km
-Weight 2.3 kg/100
attenuation dB/100m 100 MHz-7.8 db
200 MHz-11.2 db
400 MHz-16.2 db
800 MHz-22.6 db
950 MHz-25.1 db
1750 MHz-36.3 db
2150 MHz-41.3 db
