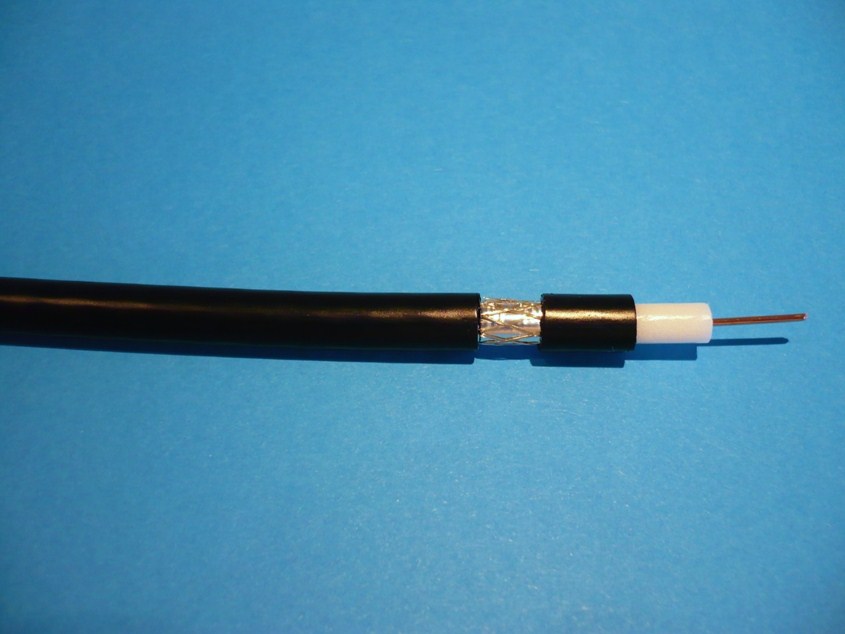

High quality coaxial cable for indoor and outdoor use. Impedance 75 Ohm, internal wire-copper wire, diameter of 1 mm inner conductor, foam dielectric, 2X shielded aluminum, PVC packaging, packed by 100 m
parameters: inner conductor CU-1 mm -outer cable diameter 6.8 mm -Max 35 mm bend radius -Resistance of inner conductor 23 Ohm/km -Weight 4.8 kg/100
attenuation dB/100m 100 MHz-6.2 db 200 MHz-8.9 db 300 MHz-10.9 db 400 MHz-12.9 db 600 MHz-16.0 db 800 MHz-18.8 db 1000 MHz-21.2 db 1750 MHz-29.0 db 2150 MHz-32.7 db
We use so-called cookies to operate our website. Cookies are files used to customize the content of the website, to measure its functionality and, in general, to ensure your maximum satisfaction. Let us know about your preferences.
Product details
parameters: inner conductor CU-1 mm
-outer cable diameter 6.8 mm
-Max 35 mm bend radius
-Resistance of inner conductor 23 Ohm/km
-Weight 4.8 kg/100
attenuation dB/100m 100 MHz-6.2 db
200 MHz-8.9 db
300 MHz-10.9 db
400 MHz-12.9 db
600 MHz-16.0 db
800 MHz-18.8 db
1000 MHz-21.2 db
1750 MHz-29.0 db
2150 MHz-32.7 db
Product manager:
Radúz Russ, PODPORA@INTER-SAT.CZ
