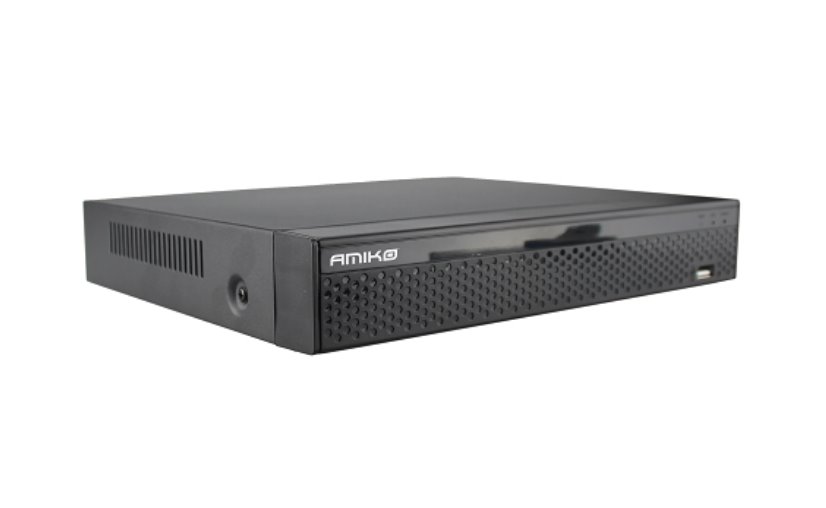

AMIKO NVR rekordér, 8/16 CH, AHD/CVI/TVI/IP/Analog

9 CH H.264 5 in 1 XVR (1080P)
Max. 4CH HD or 9CH IP Camera Input
Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
HD out, VGA and CVBS Video Output
Up to 2Mp Resolution Recording
2 x USB
ONVIF support
Live streaming to Android & iOS devices
1x SATA HDD/SSD support up to 8TB
EU black

Video:

Input: Analog: 4*1080P

Analog+Network: 2*Analog(1080P)+4*network

Network: 9*1080P/960P/720P(Total incoming bandwidth

=46M)

Input: 8CH BNC

Signal Type: Analog/AHD/CVI/TVI 2.0/Network

Output :1HD,1 VGA

Audio:

Input: 4 Channel, RCA

Output: 1 Channel, RCA

Display:

VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

HD Output: Resolution:1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

Display Split: 9 Channel/4 Channel / 1Channel

Privacy Masking: 3 Rectangular Zones (Each camera)

OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Network:

Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions:TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE

Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

CMS Software: Support Windows 7/ Windows 8/Windows 10

Extra Stream: CIF(1~25fps)

Smart Phone: iPhone, ipad, Android ,Android pad

Hard disk driver:

Interface Type 1 SATA Interface

Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)

Physical specifications:

USB Interface: 2 USB 2.0 Interfaces

Power consumption: DC 12V =6W (Without Hard Disk)

Working Environment: -10~55?/10~90%

Dimension (W×D×H): 260*215*43 (mm)

Weight: 2kg (Without HDD)
